In firefighting operations, the selection of discharge mode directly determines fire extinguishing efficiency, operational safety, and fire control effectiveness. Most people are unaware that fire truck nozzles can switch among three core discharge modes: straight stream, spray stream, and safeguarding stream. Different modes vary significantly in flow pattern, range, impact force, and coverage area, and each corresponds to completely different applicable fire scenarios.

This article, based on professional firefighting operation standards, comprehensively analyzes the principles, key characteristics, and applicable scenarios of the three discharge modes, helping our customers systematically master fire truck discharge techniques.

I. Why Do Fire Trucks Need Different Discharge Modes?

Straight stream, spray stream, and safeguarding stream correspond to three different fire extinguishing mechanisms: impact extinguishing, vaporization suffocation, and thermal radiation protection. Firefighters must flexibly switch according to site conditions. So, why can't we keep using just one type of stream?

1. Diversity of fire types requires different extinguishing media forms

Different fire types have different combustion characteristics, which determine the appropriate extinguishing method:

• Class A solid material fires require straight stream impact to break up burning materials and penetrate for internal cooling;

• Class B liquid fires cannot use straight stream impact (which causes splashing and spreads the fire), but should use safeguarding or spray stream for covering and dilution;

• Class E energized electrical fires can only use spray stream, as fine water droplets do not form a continuous conductive path;

• Enclosed space fires require spray stream to fill the entire space, achieving extinguishment through vaporization heat absorption and suffocation.

No single mode can adapt to all fire types.

2. Different stages of the same fire require different tactical approaches

Even for the same fire, different stages require different discharge modes:

• In the initial stage when the fire is intense, straight stream is needed for long-range impact on the fire point for rapid suppression;

• During advancement, safeguarding stream is needed to form a water curtain barrier to block thermal radiation and protect personnel;

• Before entering a room, spray stream is needed to cool and dilute smoke and gases, creating conditions for interior attack.

A single mode cannot cover the operational needs throughout the entire firefighting process.

3. Range, coverage area, and cooling efficiency cannot be achieved simultaneously

The three modes each have their own advantages and disadvantages in three key dimensions:

• Straight stream has the longest range (up to 120m+), but small coverage area, only point-shaped;

• Spray stream fills the space and has the highest vaporization heat absorption efficiency, but the shortest range;

• Safeguarding stream has large coverage area with fan-shaped spread, but shorter range.

Because fire types differ, stages differ, and tactical objectives differ, no single stream form can be suitable for all fire scenarios. The combination and rapid switching of the three modes are the fundamental operational capability for fire trucks to adapt to changing fireground conditions.

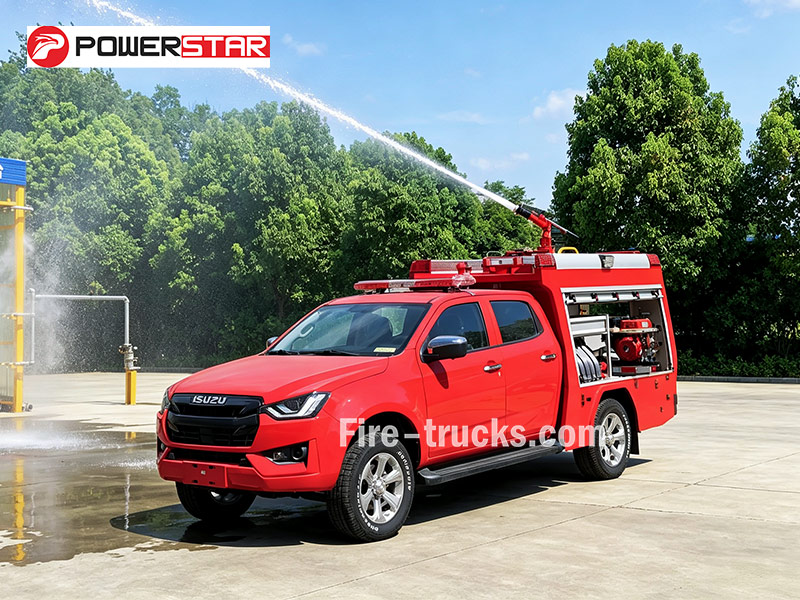

II. Straight Stream Mode: Long-Range Attack, Direct Penetration to Deep-Seated Fire Sources

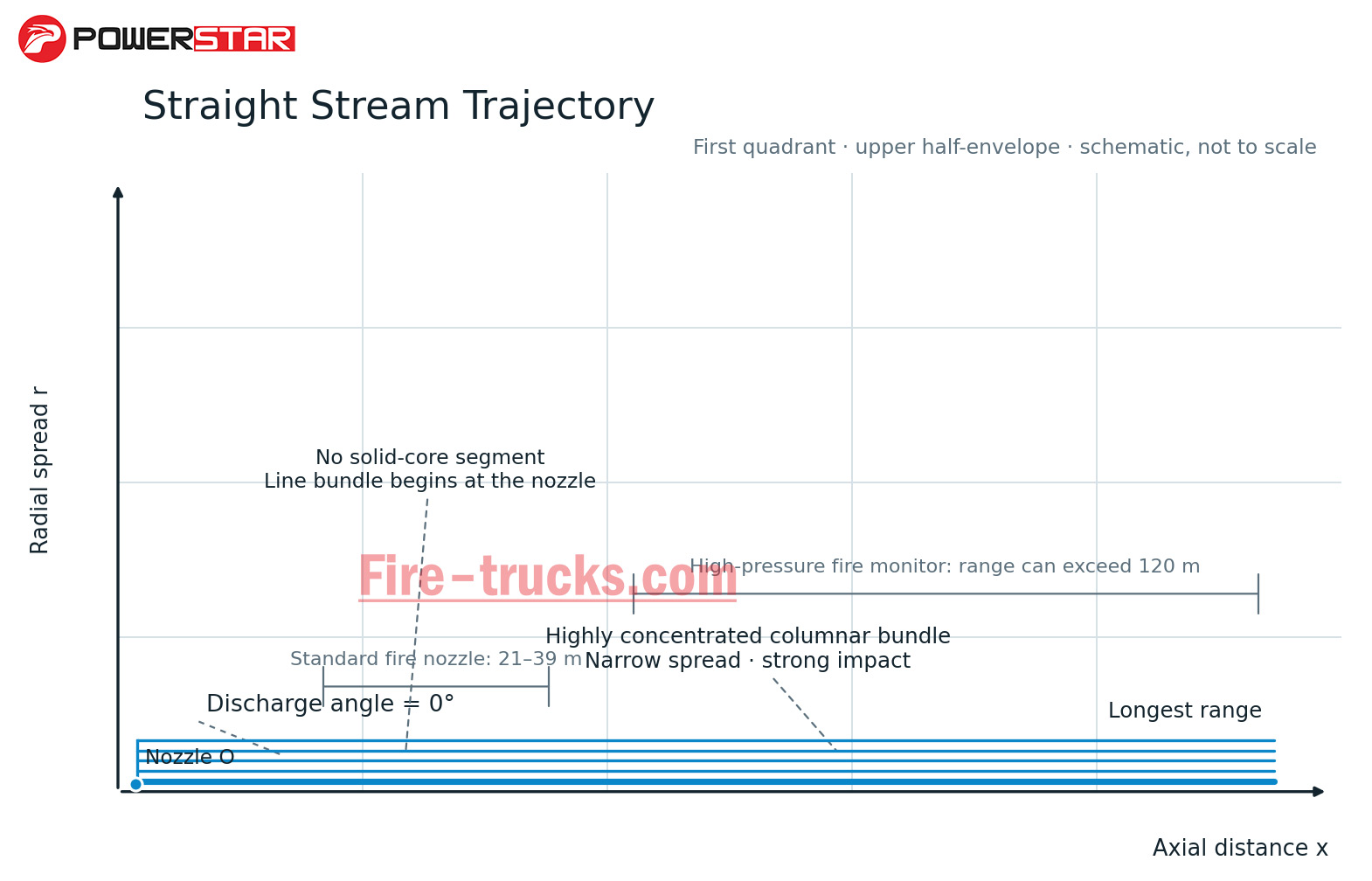

The water stream has a jet edge angle of 0° without a solid core segment. The water is discharged in a highly concentrated columnar form with long range and strong impact force, making it the farthest-reaching mode among the three. Standard fire nozzles can achieve a straight stream range of 21-39 meters, while high-pressure fire monitors can reach over 120 meters.

1. Working Principle

High-pressure water from the fire truck passes through a dedicated straight stream nozzle, where it is guided and concentrated. The atomization effect is eliminated, and the water is fully focused to form a dense, well-regulated high-pressure columnar stream that continuously and stably discharges, ensuring that the flow momentum is not dispersed and the range remains uncompromised.

2. Key Characteristics

The overall characteristics of straight stream are highly distinctive, with four core attributes: highly concentrated water column, longest discharge range, maximum impact force, and extremely strong flame penetration. It is the most dynamically superior form among the three discharge modes.

3. Advantages and Disadvantages

Advantages: Suitable for long-range firefighting operations; can penetrate surface flames and smoke to reach deep-seated fire sources; compatible with fire truck monitors for large-flow, long-range continuous discharge, perfectly suited for high-rise and open-area large-scale fires.

Disadvantages: The water stream is concentrated and singular, resulting in small coverage area and limited overall cooling range; fixed-point high-pressure discharge can easily cause water damage accumulation on building interiors and equipment, with relatively obvious secondary losses.

4. Recommended Application Scenarios

Straight stream is suitable for high-intensity, long-range, deep-seated open flame fires. Core applicable scenarios include: various civil and commercial building open flame fires, warehouse storage fires, high-rise building exterior and interior deep-seated fires, forest and wildland long-range open flame firefighting, and large-scale industrial plant and equipment firefighting operations using fire monitors.

III. Spray Stream Mode: Ultra-Fine Atomization, Cooling and Explosion Protection for Special Fire Scenarios

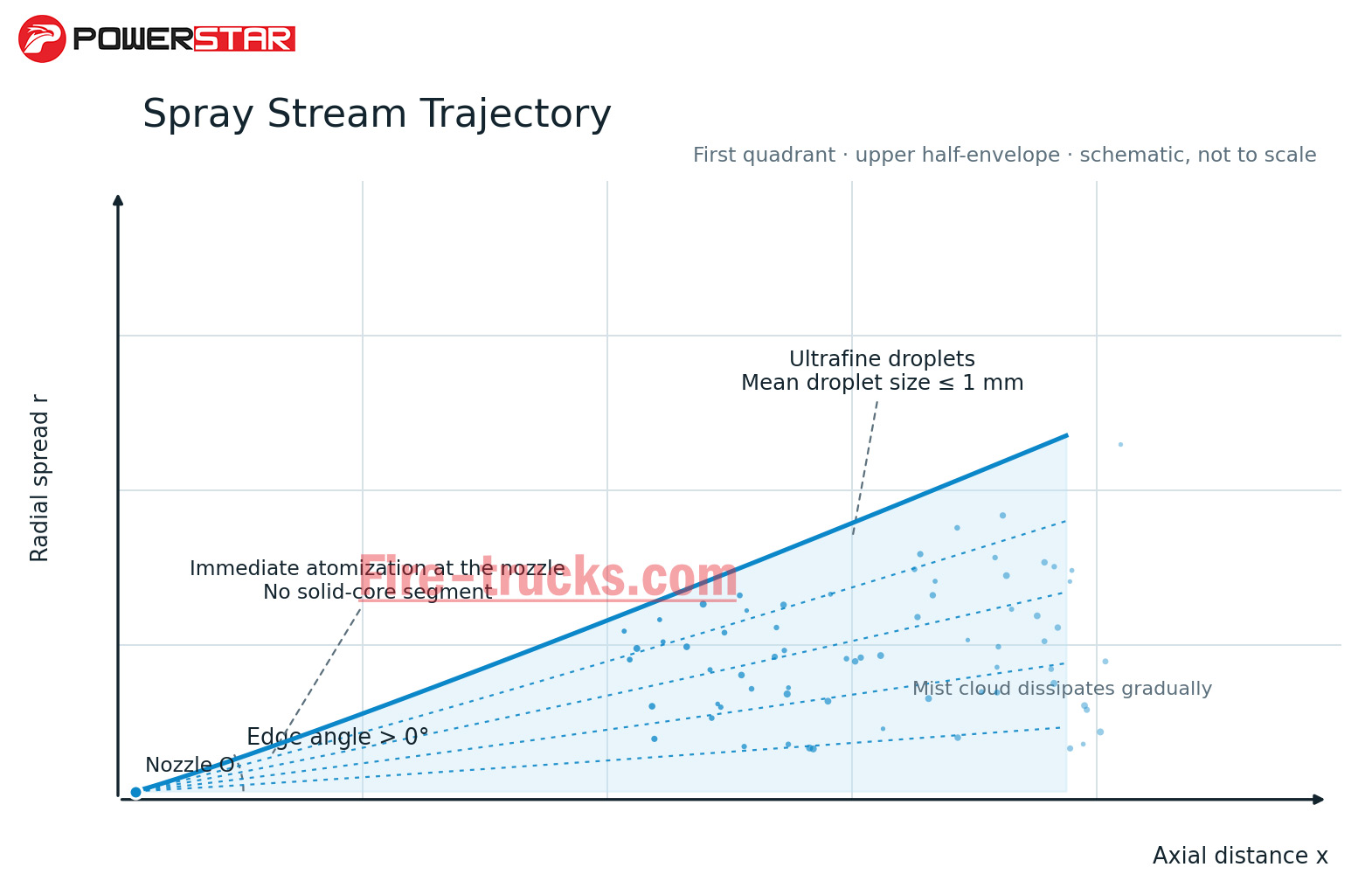

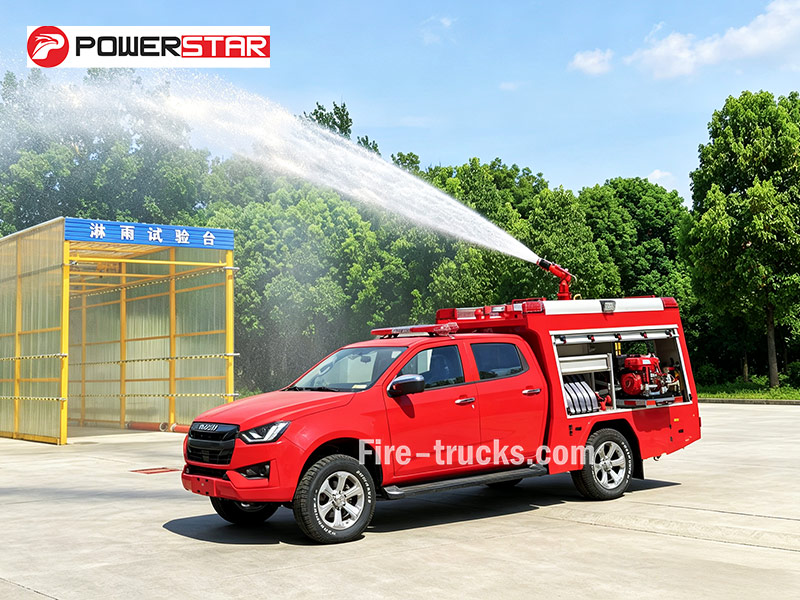

With an average droplet size not greater than 1mm, the jet edge angle is greater than 0° without a solid core segment. The water is broken down into extremely fine mist particles with extremely high vaporization heat absorption efficiency, suitable for indoor fires, energized electrical fires, and toxic gas dilution.

1. Working Principle

Relying on the special structure of the fire truck's high-pressure atomizing nozzle, the conventional water stream is cut and dispersed at high speed. When discharged from the nozzle, it is torn by centrifugal force into fine water droplets (≤1mm), forming a diffuse mist-like stream. The water mist absorbs a large amount of heat upon vaporization, rapidly reducing the fireground temperature while water vapor dilutes the oxygen concentration in the combustion zone.

2. Key Characteristics

Spray stream has the finest water droplets and the largest air contact surface area, with cooling heat absorption efficiency far surpassing straight stream and safeguarding stream. It uses less water with higher resource utilization efficiency, offering excellent firefighting precision.

3. Advantages and Disadvantages

Advantages: Extremely fast fireground cooling, rapidly reducing smoke temperature and diluting toxic and flammable gases; high operational safety, significantly improving the safety factor for personnel rescue and search operations while conserving water and reducing secondary water damage.

Disadvantages: The shortest discharge range among the three modes with relatively weak momentum; the mist stream has poor stability and is easily affected by wind; unsuitable for large-area outdoor fires, unable to suppress high-intensity open flames.

4. Recommended Application Scenarios

Spray stream is exclusively suitable for special high-risk, enclosed, and precision scenarios. Core applicable scenarios include: various indoor enclosed space fires; energized electrical equipment fires (strictly following safety operation procedures); firefighting operations in ship enclosed compartments; and firefighting in enclosed narrow spaces such as subways and tunnels.

IV. Safeguarding Stream Mode: Balanced Coverage, Combining Fire Extinguishing and Protection

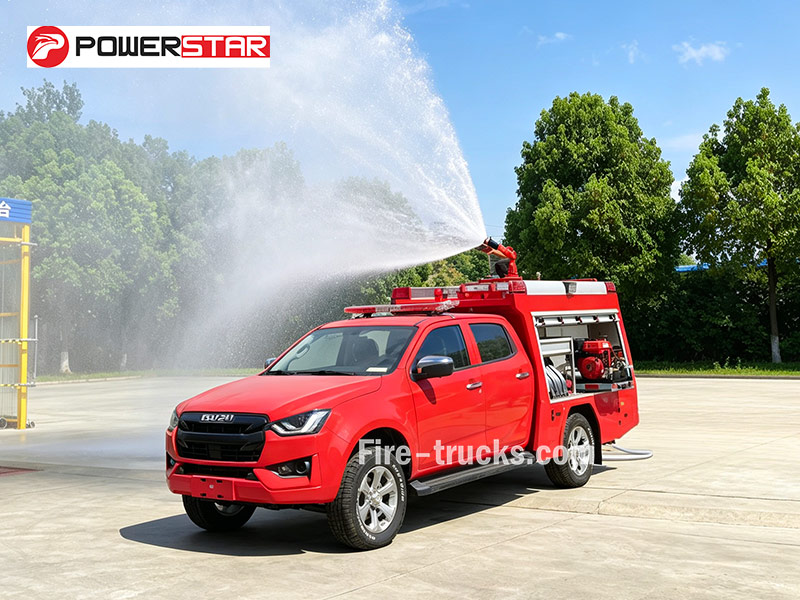

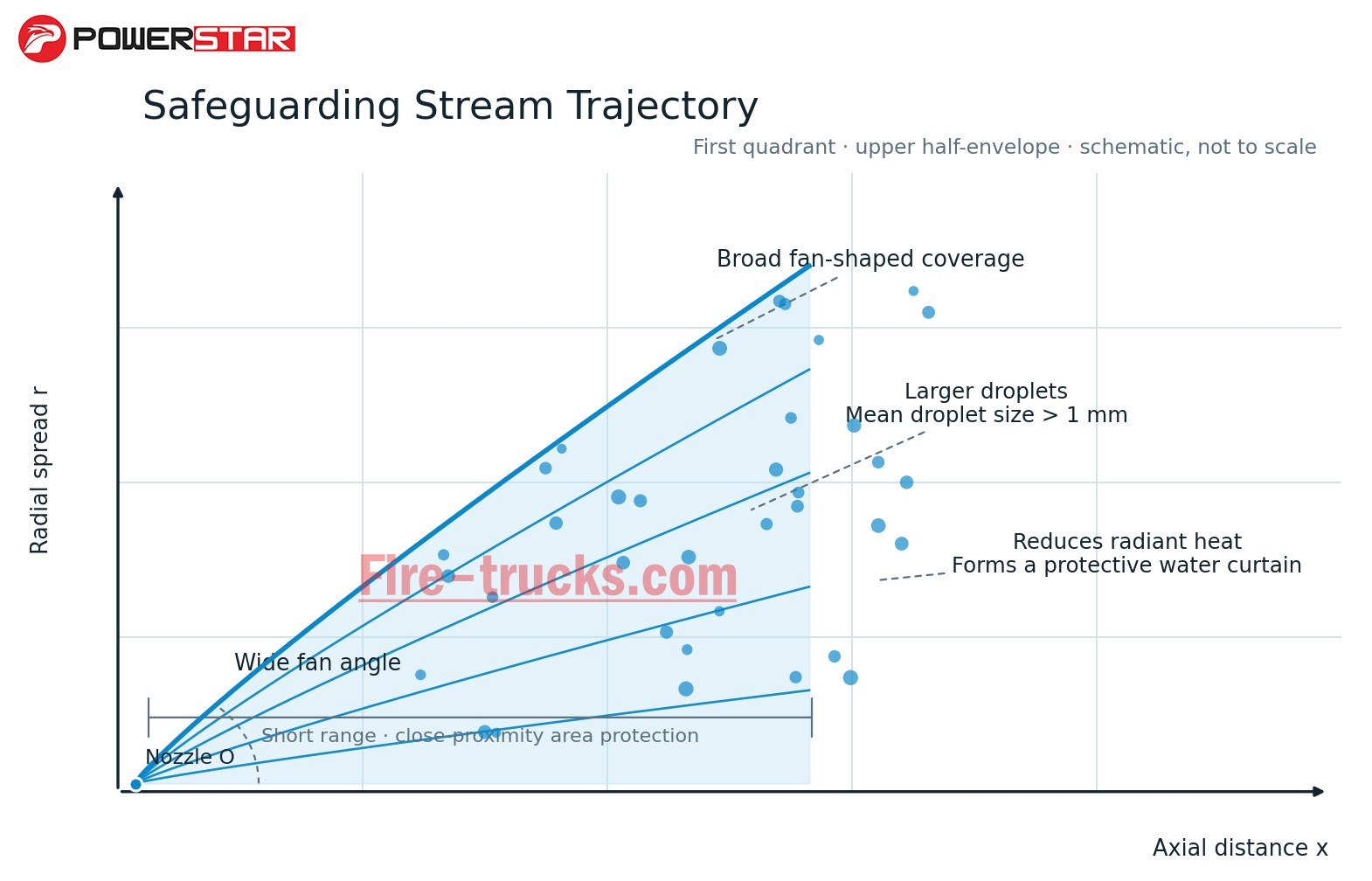

With an average droplet size greater than 1mm, this is a fan-shaped water stream used to reduce thermal radiation. The water spreads in a fan-shaped pattern with large coverage area but shorter range, suitable for close-range large-area coverage and thermal radiation protection.

1. Working Principle

The water passes through a tapered flow guide device and spreads in a fan-shaped pattern, with droplet sizes larger than 1mm, forming an umbrella-shaped water curtain. The range is shorter but coverage area is large, primarily used for "spread coverage" and "thermal radiation isolation."

2. Key Characteristics

The core advantage of safeguarding stream is its wide coverage area, with excellent and balanced overall fireground cooling effect. It can quickly form a continuous water curtain barrier, capable of both fire extinguishing and control, as well as fireground thermal protection, with strong comprehensive adaptability.

3. Advantages and Disadvantages

Advantages: Can quickly suppress open flames, control horizontal fire spread, and provide large-area cooling to high-temperature building structures and equipment; can form an isolation water curtain to effectively block fireground thermal radiation and isolate high-temperature smoke, providing comprehensive protection for frontline firefighters.

Disadvantages: The discharge range is significantly shorter than straight stream, making it unsuitable for long-range firefighting; after the water spreads, its momentum weakens, resulting in relatively weaker penetration capability for flames and debris, making it unsuitable for deep-seated fire source attacks.

4. Recommended Application Scenarios

Safeguarding stream focuses on protection and fire control. Core applicable scenarios include: cooling building exterior walls and surrounding fire areas, cooling and flame-retardant treatment of industrial storage tank surfaces, thermal insulation protection for chemical plant equipment, fireground water curtain isolation and containment, and fire control operations for various small and medium-sized incipient fires.

V. Core Differences Between the Three Discharge Modes and Quick Selection Guide

Discharge Mode	Flow Characteristics	Core Advantages
Straight Stream	Columnar and dense, long range, strong impact force	Strong penetration, long-range firefighting, strong attack capability
Spray Stream	Ultra-fine mist droplets, full coverage, rapid heat absorption, good insulation	Cooling and suffocation, explosion protection and smoke exhaust, high safety factor
Safeguarding Stream	Droplet-shaped dispersion, wide coverage, balanced impact and protection	Strong versatility, both fire extinguishing and shielding, smoke exhaust and cooling

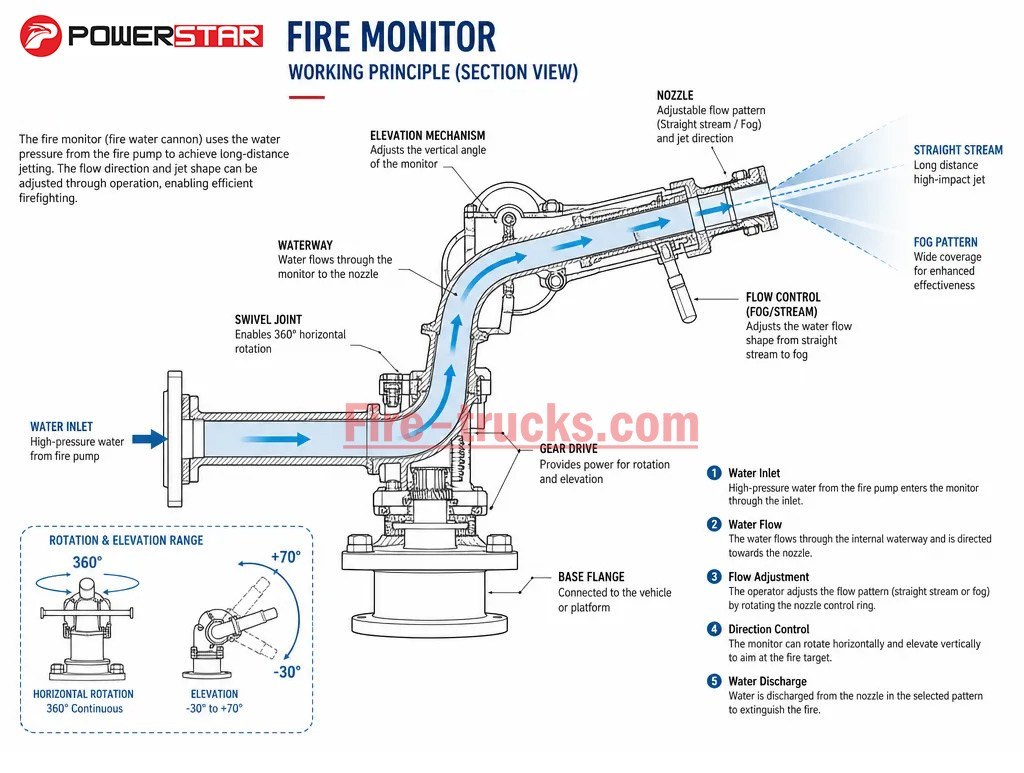

VI. How Do Modern Fire Monitors Switch Between Discharge Modes?

Fire monitors mounted on the roof or fixed brackets offer more diverse switching methods than handheld nozzles. They are divided into the following four types by control method:

1. Manual Nozzle Adjustment

The firefighter stands directly at the monitor position, turning the handwheel or pulling the lever to adjust the nozzle opening or flow guide cone position, thereby switching modes.

Advantages: Pure mechanical structure, independent of electric power, reliable in extreme environments, low cost.
Disadvantages: Personnel must approach the monitor position, with risk from high-temperature thermal radiation; slow adjustment speed.

Applicable: Township fire trucks, enterprise brigade vehicles, budget-limited procurement projects.

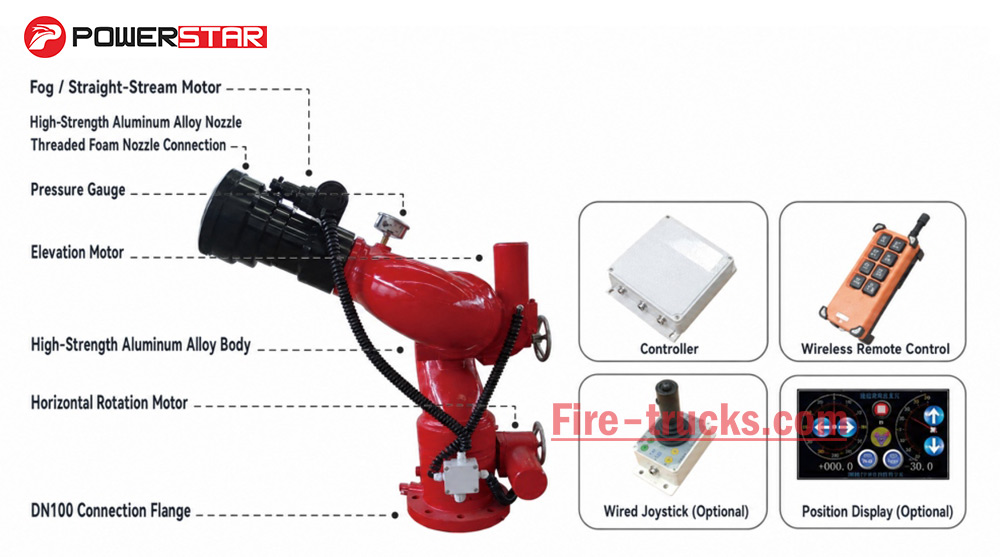

2. Electronically Controlled Fire Monitor

The monitor has a built-in electric actuator (motor-driven). The firefighter controls switching remotely via the control panel in the cab or a wired handheld controller.

Working Principle: The control panel sends an electrical signal → the electric actuator rotates → driving the internal flow guide mechanism to move → switching the discharge mode. It can also control horizontal rotation (0°-360°) and elevation (-15° to +75°).

Advantages: Personnel don't need to get off the vehicle or be exposed to high-temperature environments; convenient operation, fast response (millisecond-level).
Disadvantages: Relies on the vehicle's 24V power supply; cannot operate in case of power failure.

Applicable: Urban main battle fire trucks, airport fire trucks.

3. Remote-Controlled Fire Monitor

The firefighter operates the monitor via a wireless remote control (2.4GHz or 433MHz, effective range 100-300 meters) to control all monitor actions remotely.

Advantages: Firefighters can operate from a safe distance, completely avoiding thermal radiation and toxic smoke. Some models support "one-touch preset positions" (e.g., preset elevation 35°, safeguarding mode, flow 80L/s), automatically adjusting the monitor position with one button.
Disadvantages: Higher cost; smoke and electromagnetic interference on the fireground may affect wireless signals; batteries require regular charging.

Applicable: Large oil tank farm fire trucks, airport main fire trucks, hazardous chemical firefighting.

4. Automatic Discharge Mode

The fire monitor is integrated with infrared thermal imagers and ultraviolet flame detectors. The control system automatically analyzes flame size, distance, and temperature, automatically determining and switching to the most suitable discharge mode.

Working Principle: Infrared/ultraviolet sensors detect flame signals → the control system analyzes burning area and distance → automatically matching the optimal discharge mode (straight/spray/safeguarding) and flow rate.

Advantages: Reduces human judgment errors, fastest response.
Disadvantages: Technology is not yet mature; sensors are susceptible to smoke and dust interference; extremely high cost; not yet widely deployed.

Applicable: High-end intelligent firefighting equipment, unmanned firefighting systems.

VII. Frequently Asked Questions (FAQ)

1. What is the difference between straight stream and safeguarding stream?

Straight stream has longer range and stronger impact force; safeguarding stream has larger coverage area and is more suitable for cooling and protection.

2. Why does spray stream have better cooling effect?

Because spray stream consists of a large number of fine water droplets with fast evaporation speed, which can absorb heat more efficiently.

3. Do all fire trucks support all three discharge modes?

Not all fire trucks are equipped with all three modes. It depends on the configuration of fire nozzles, fire monitors, and nozzles.

4. Why do firefighters frequently switch discharge modes?

Different fire stages require different firefighting strategies. For example, straight stream may be used to suppress flames in the initial stage, while spray or safeguarding stream is used for cooling and protection in the middle and later stages.

5. Which discharge mode saves the most water?

Spray stream generally has the highest water efficiency, performing better in scenarios requiring rapid cooling and thermal radiation control.

VIII. Summary

The three discharge modes of fire trucks—straight, spray, and safeguarding—each have their own roles. There is no absolute superiority or inferiority, only whether they are suitable for the fire scenario. Straight stream focuses on long-range, strong penetration, and deep-seated fire attack; spray stream focuses on safety, precision, explosion protection, and insulation; safeguarding stream focuses on general adaptability, protection, and cooling.

Proficiently mastering the scenario adaptation skills of the three discharge modes and flexibly switching according to fire type, fire size, and operational environment is the only way to maximize fire truck firefighting effectiveness, enabling rapid, safe, and efficient handling of various fire scenarios, while avoiding firefighting risks and ensuring operational safety.
