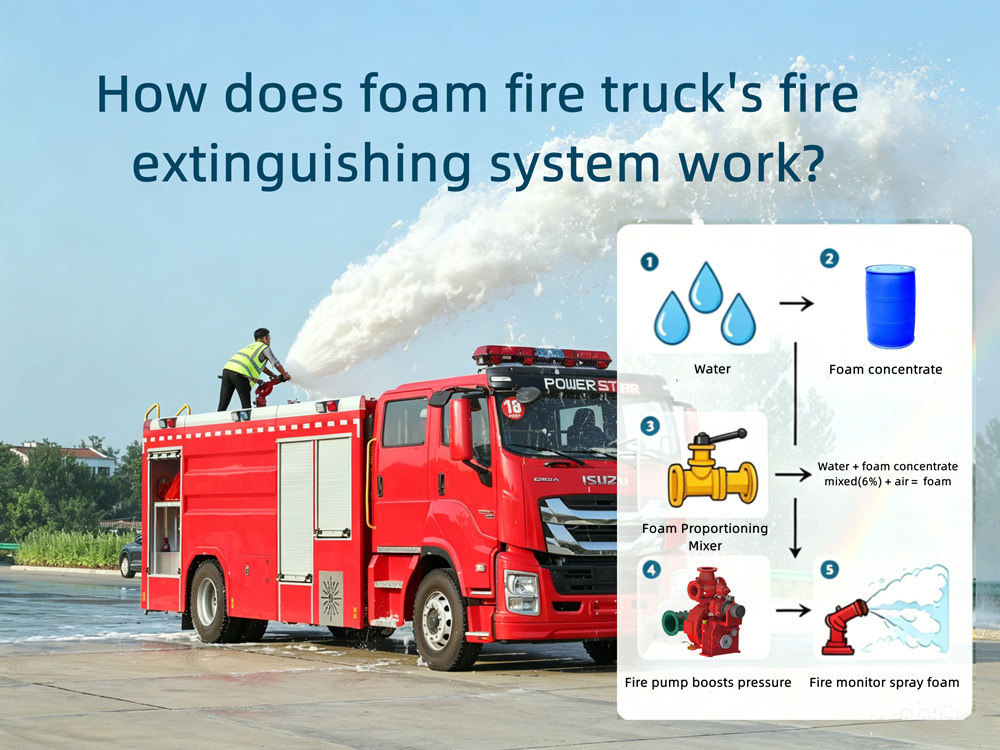

The fire truck foam system mixes water with foam concentrate at precise ratios (1%, 3%, or 6%) to create a foam solution. This solution is then pressurized by the fire pump and expanded with air through foam nozzles — this is the core working principle of how a foam fire truck mixes foam and water — ultimately producing a stable foam blanket that covers the fuel surface. This process increases firefighting efficiency by over 50% while reducing foam concentrate waste by 30%.

how does a fire truck mix foam with water

» I. Why Does a Fire Truck Need a Foam System?

Compared to using water alone, foam offers three key advantages:

1. Oxygen Isolation — Foam covers the burning surface, forming a dense physical barrier that prevents oxygen from reaching the combustion zone, thereby suppressing the fire.

2. Temperature Reduction — The water content in the foam solution absorbs large amounts of heat as it evaporates, rapidly reducing the temperature of the burning area.

3. Re-ignition Prevention — The foam layer continues to cover the fire area even after extinguishment, effectively isolating oxygen and flammable vapors, significantly reducing the risk of re-ignition.

» II. Core Working Principles of the Foam System

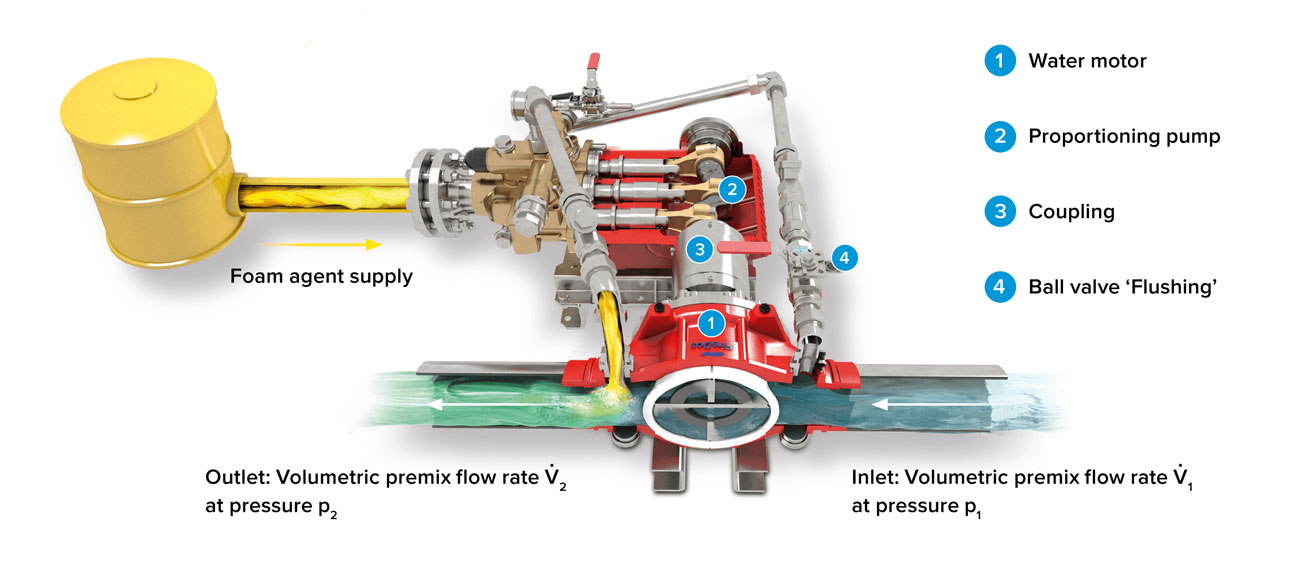

1. Proportioning System: Water flows through the proportioner → creates negative pressure (negative pressure system) or uses a foam pump (positive pressure system) → draws foam concentrate from the foam tank → mixes at preset ratio (1%, 3%, or 6%) → foam solution flows to the pump.

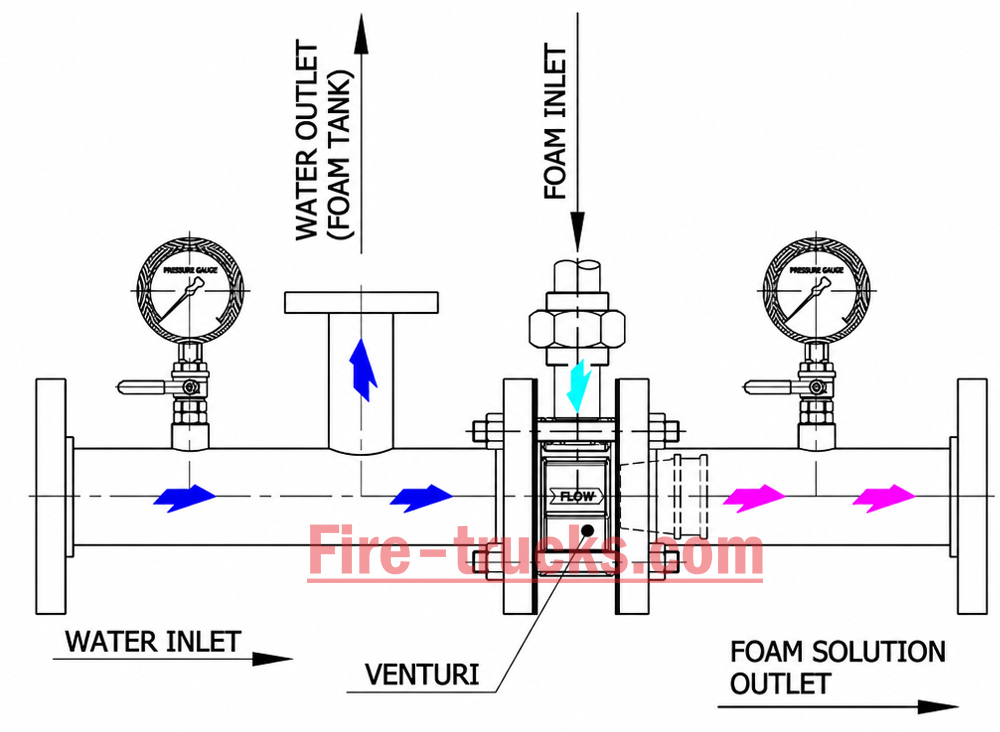

fire truck foam proportioning system working principle

2. Pump Pressurization: The foam solution enters the centrifugal pump → pressurized to 0.8–1.2 MPa → delivered through piping to discharge outlets or the foam monitor.

3. Foam Expansion: The pressurized foam solution passes through a foam nozzle or aerating device → air is entrained → the solution expands into finished foam → covers the fuel surface → cuts off oxygen and suppresses the fire.

Key Concept: Foam concentrate + water does not equal finished foam. The mixed foam solution is still a liquid — it must be combined with air through a foam nozzle to become true firefighting foam. When the high-pressure foam solution passes through the nozzle at high speed, it creates a localized negative pressure zone that forcibly draws in air. The air and liquid collide and shear violently inside the nozzle, instantly breaking down into millions of tiny bubbles that accumulate to form white foam.

fire truck foam proportioning system working principle

» III. How Does a Fire Truck Mix Foam and Water?

The foam mixing process on a fire truck consists of four main steps, from water supply to final foam formation.

Step 1: The Fire Pump Provides Water Flow

After the fire truck is started, the fire pump provides power for the foam system. Water sources can include the onboard tank, fire hydrant, rivers, lakes, or reservoirs. The fire pump is responsible for building water pressure, providing stable flow, and pushing water into the foam proportioning system.

Step 2: Foam Concentrate Enters the System

The fire truck is equipped with an independent foam tank (304 stainless steel, 200–2,000 liters). When the operator activates foam mode, the foam concentrate enters the water stream.

Step 3: Foam Concentrate and Water Are Mixed at the Proper Ratio

The foam proportioning system precisely controls the amount of foam concentrate added based on the preset ratio.

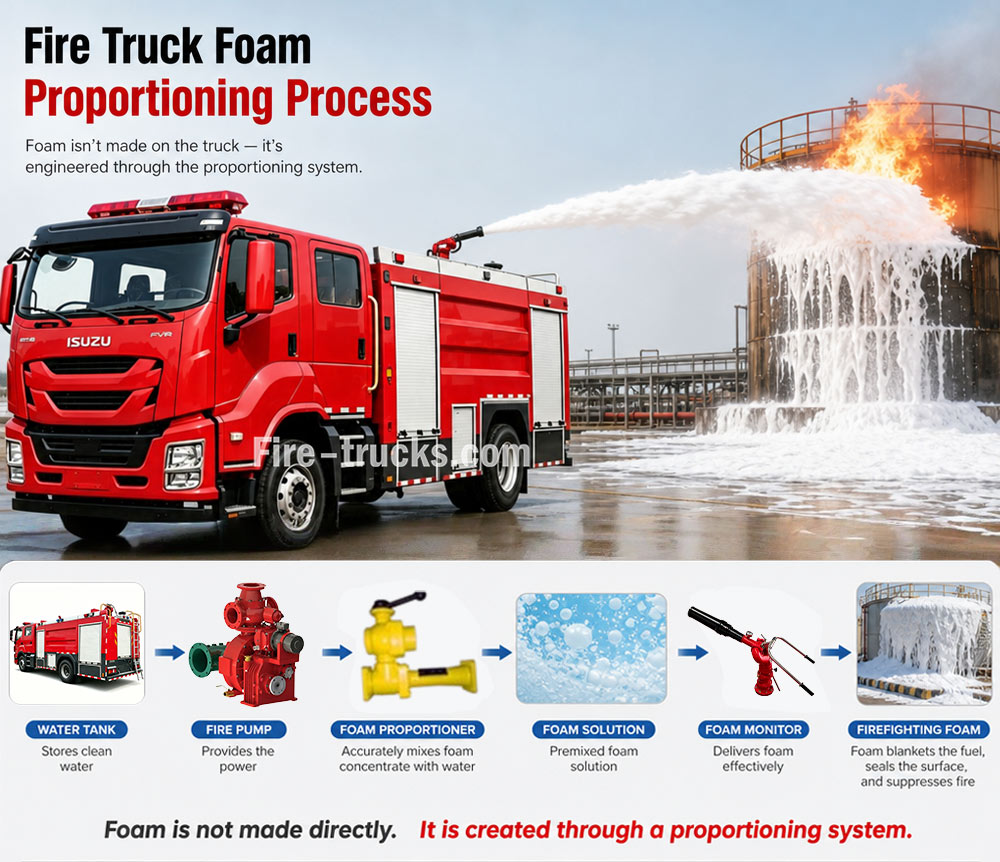

how fire truck mixes foam and water procedure

Calculation Example: Fire pump flow rate at 60 L/s, foam ratio at 3%, then 60 × 3% = 1.8 L/s of foam concentrate is added per second, resulting in a foam solution flow rate of 61.8 L/s.

Common Mixing Ratios and Applications:

Mixing Ratio	Application Scenario
0.1%–0.3%	Wetting agents, enhancing water effectiveness (Class A fires)
1%	Some Class A fires, low-expansion foam applications
3%	Petroleum, fuel oil, hydrocarbon liquid fires (standard ratio)
6%	Large fuel oil fires, polar solvent fires (alcohol, acetone, etc.)

Step 4: Forming the Firefighting Foam

After mixing with air, the foam solution forms a stable foam blanket that significantly expands in volume, providing greater coverage. It effectively isolates oxygen, cools the fuel surface, and suppresses flammable vapors.

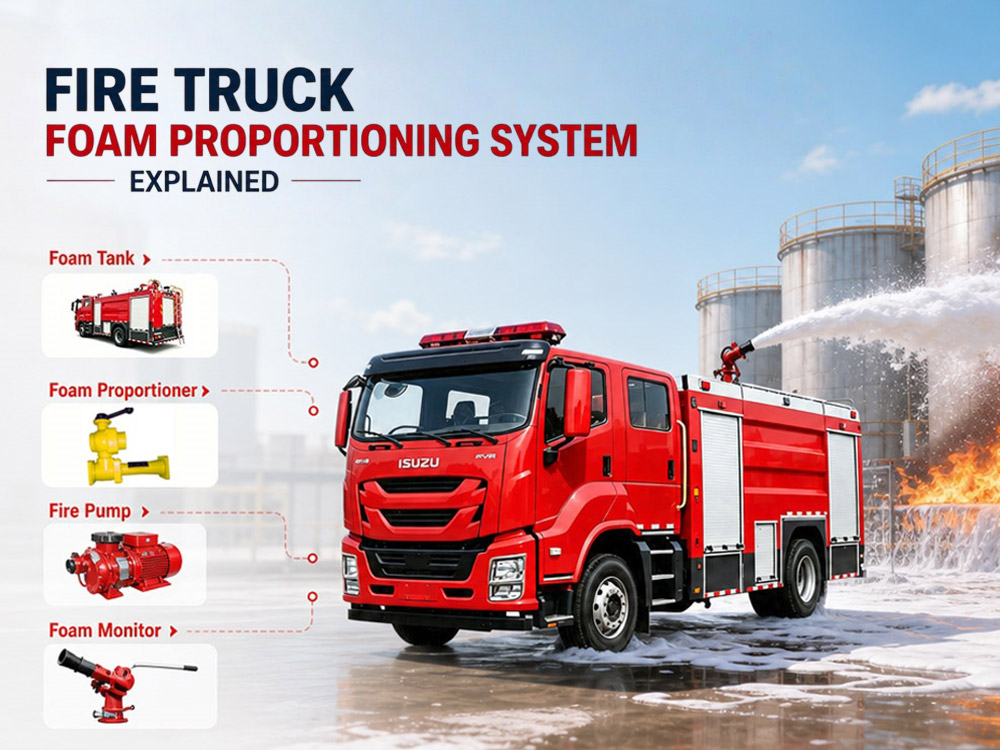

» IV. Three Key Components of the Fire Truck Foam System

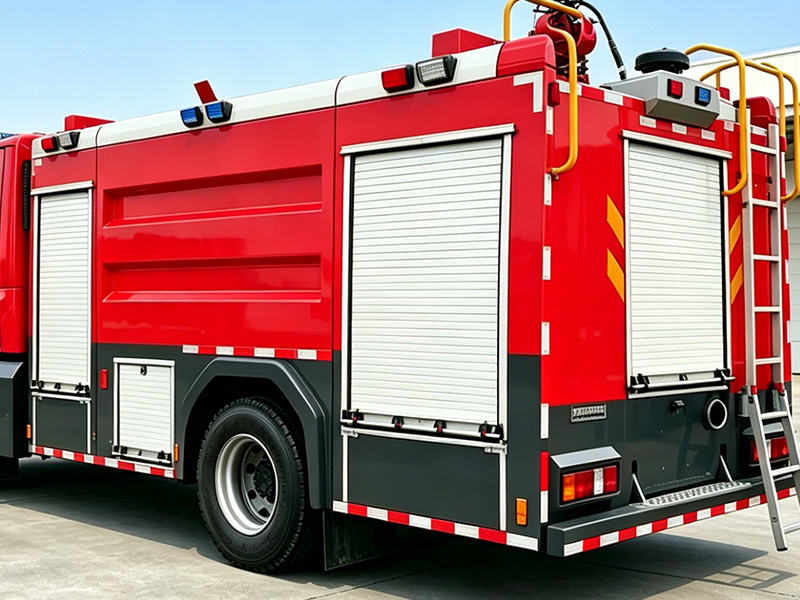

Foam Tank
304 stainless steel construction, corrosion-resistant design, equipped with manhole cover, level indicator, drain port, and breather valve.

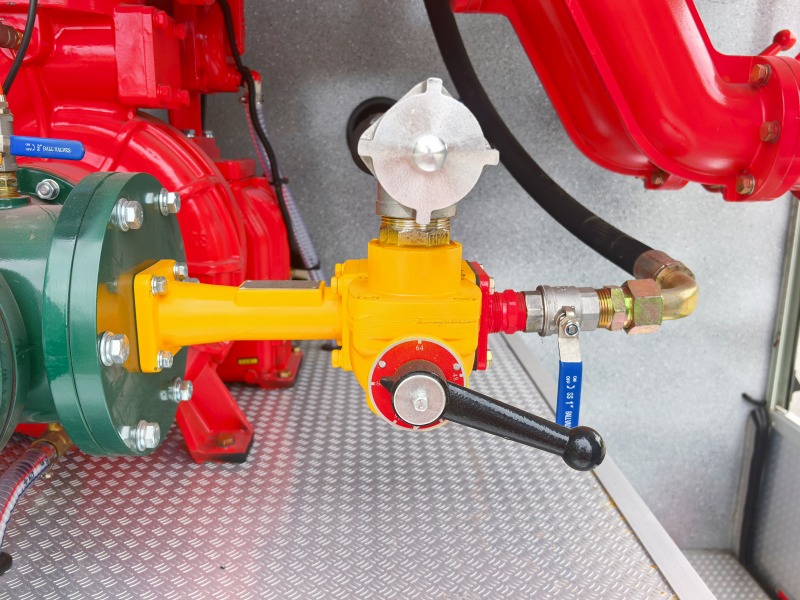

Foam Proportioner
Installed in the water line, uses negative pressure or positive pressure to inject foam concentrate into the water stream. Common mixing ratios: 1%, 3%, 6%.

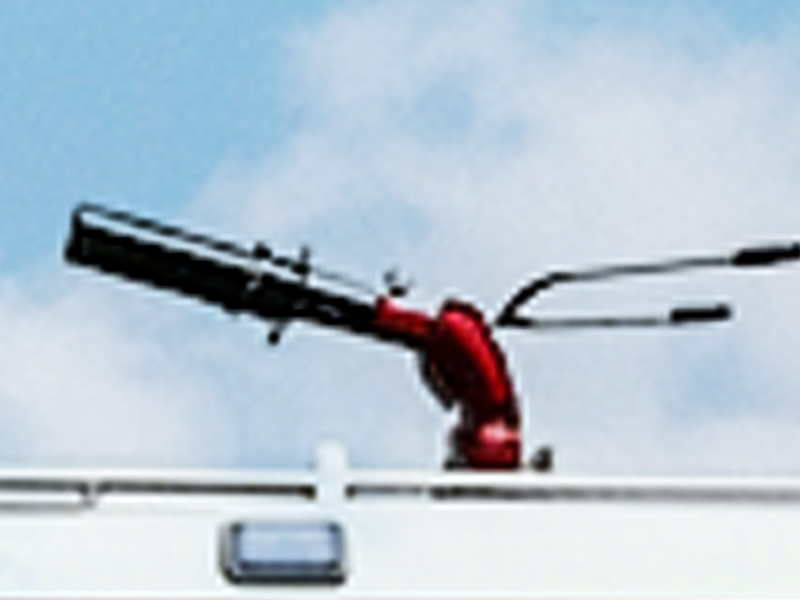

Foam Monitor
Roof-mounted or handheld, 360° horizontal rotation, -30° to 80° vertical tilt, capable of producing expanded foam for fire suppression.

» V. Types of Fire Truck Foam Proportioning Systems

1. Pump-Direct Proportioning System (Negative Pressure)

Uses the negative pressure created by the fire pump to draw foam concentrate from the foam tank into the water stream. Suitable for standard foam fire trucks and municipal firefighting vehicles.

Advantages:

Simple structure with no complex moving parts
Lower cost, economical
Easy maintenance, low failure rate
High reliability, durable

Disadvantages:

Moderate mixing accuracy, significantly affected by water pressure and flow changes
Cannot maintain precise ratio during large flow fluctuations
Foam ratio is typically fixed (e.g., 3% or 6%) and not adjustable

2. Balanced Pressure Foam Proportioning System

An independent foam pump generates pressure that keeps the foam concentrate pressure equal to (balanced with) the water pressure at all times. The system continuously monitors and automatically balances the pressure difference between the two streams through pressure-regulating valves, ensuring precise mixing ratios even under varying flow and pressure conditions. Suitable for petrochemical fire trucks and airport fire trucks.

Advantages:

Precise mixing ratio with minimal error
Adapts to flow changes, maintains stability during flow fluctuations
High stability, unaffected by water pressure variations
Mixing ratio adjustable within a range (e.g., 1%–6%)

Disadvantages:

More complex structure, requires additional foam pump and control system
Higher cost than pump-direct systems
Higher maintenance requirements

3. Electronic Foam Proportioning System

Working Principle: Uses a closed-loop control system consisting of flow sensors, an electronic control unit, and a precision injection valve. The system monitors water flow and foam concentrate flow in real time, automatically calculating and adjusting foam concentrate injection to maintain precise mixing ratios at all times. Suitable for premium fire trucks, large industrial fire protection systems, and airport fire trucks.

Advantages:

Highly automated, requiring no manual intervention
Extremely precise, accuracy up to ±0.5%
Real-time monitoring of mixing ratio and system status
Adapts to a wide range of flow variations
Data logging and operational analysis capabilities

Disadvantages:

Higher cost, significant initial investment
Requires specialized technicians for maintenance and repair
Dependent on electronic components, potentially affected by harsh environments

4. CAFS (Compressed Air Foam System)

Working Principle: CAFS is an advanced foam firefighting technology that mixes water, foam concentrate, and compressed air at specific ratios to produce high-quality, high-energy dry foam. The introduction of compressed air significantly expands the foam volume, creating fine, uniform, highly adhesive premium foam. Suitable for advanced firefighting applications, forest fires, industrial facilities, and airport fire trucks.

Core Advantages:

Excellent foam adhesion — Foam adheres to vertical and horizontal surfaces for extended periods
Water conservation — Significantly reduces water usage compared to traditional water-based firefighting
Higher firefighting efficiency — Quickly covers the fire source, lowers temperature, and reduces re-ignition
Enclosed space advantages — Low water content results in less secondary water damage

Disadvantages:

Complex system, requires air compressor and dedicated control system
Higher cost
Higher operation and maintenance requirements

» VI. System Selection Guide

1. Foam Proportioning System Comparison

Comparison Dimension	Pump-Direct System	Balanced Pressure System	Electronic System	CAFS System
Mixing Accuracy	Moderate	High	Very High	High
Cost	Low	Moderate	High	Higher
Maintenance Difficulty	Simple	Moderate	Complex	Complex
Application Scenarios	Municipal Firefighting	Industrial Firefighting	Airports, Chemical Plants	Advanced Firefighting

2. Application Scenario Recommendations

Scenario	Recommended System	Reason
Municipal Firefighting	Pump-Direct System	Cost-effective, meets daily needs
Industrial Parks	Balanced Pressure System	Balances cost and accuracy
Petrochemical Plants	Electronic System	Variable flow, high accuracy required
Airport Rescue	Electronic or Balanced Pressure System	High reliability, variable flow conditions
Large Remote Operations	CAFS System	High foam quality, water-efficient

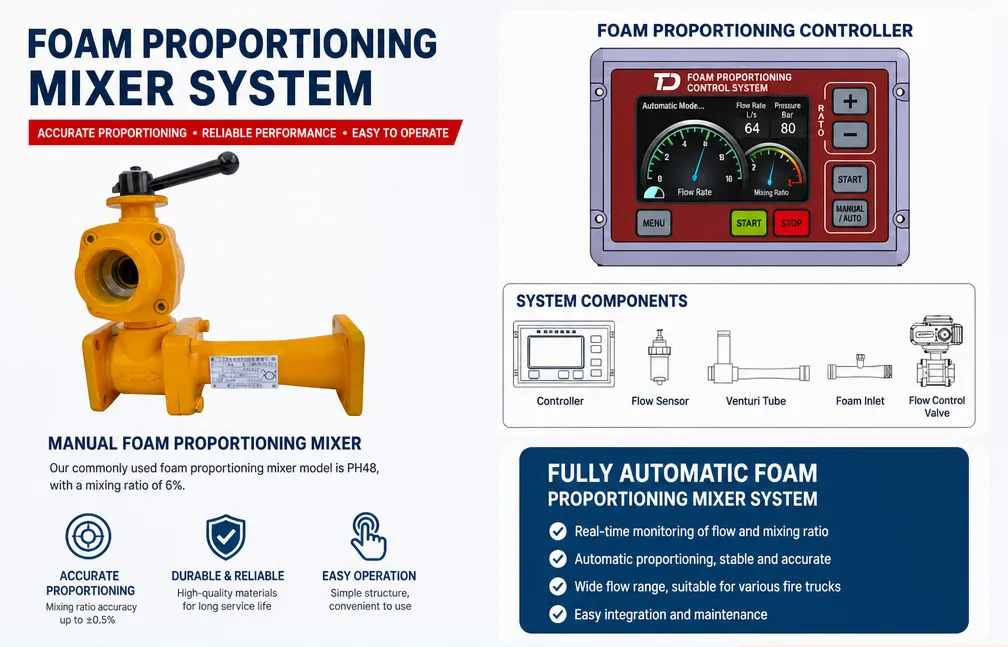

how to adjust foam proportioner manually

» VII. Troubleshooting Guide

Problem	Possible Cause	Solution
No foam	Empty foam tank, proportioner not working	Check foam level; inspect proportioner
Incorrect foam ratio	Proportioner setting error, blocked pickup line	Adjust settings; clean pickup line and strainer
Poor foam quality (watery)	Low concentrate ratio, expired concentrate	Check ratio; replace expired concentrate
Foam breaks too quickly	Wrong concentrate type, contamination	Use correct type; flush system
Low flow rate	Clogged nozzle, pump problem	Clean nozzle; check pump
No foam at all	Proportioner not drawing concentrate	Check pickup line, strainer, and valves

» VIII. Frequently Asked Questions (FAQ)

1. How does a fire truck produce foam?

Through the foam proportioning system, foam concentrate and water are mixed and then expanded with air to form foam.

2. What are the common foam-to-water ratios?

Common ratios are 0.1%, 1%, 3%, and 6%.

3. Can a fire truck discharge water and foam simultaneously?

Yes. Different piping and control systems allow quick switching between water mode and foam mode.

4. What is a CAFS system?

CAFS is a Compressed Air Foam System that produces more stable firefighting foam by introducing compressed air.

5. Which foam system is recommended for industrial firefighting?

For high-risk industries such as petrochemical plants, balanced pressure systems or electronic proportioning systems are typically recommended.

» IX. Conclusion

The core principle of mixing foam on a fire truck is to add foam concentrate to the water stream at a precise ratio through the foam proportioning system, then combine it with air through discharge devices to create finished firefighting foam.

Complete Process: Proportioning (1%, 3%, or 6%) → Pressurization (0.8–1.2 MPa) → Expansion (air entrained at the nozzle) → Application (foam blankets the fuel surface, cuts off oxygen, and suppresses the fire)

Properly configuring a foam system improves firefighting efficiency, reduces foam consumption, and ensures long-term stable operation of the fire truck.
