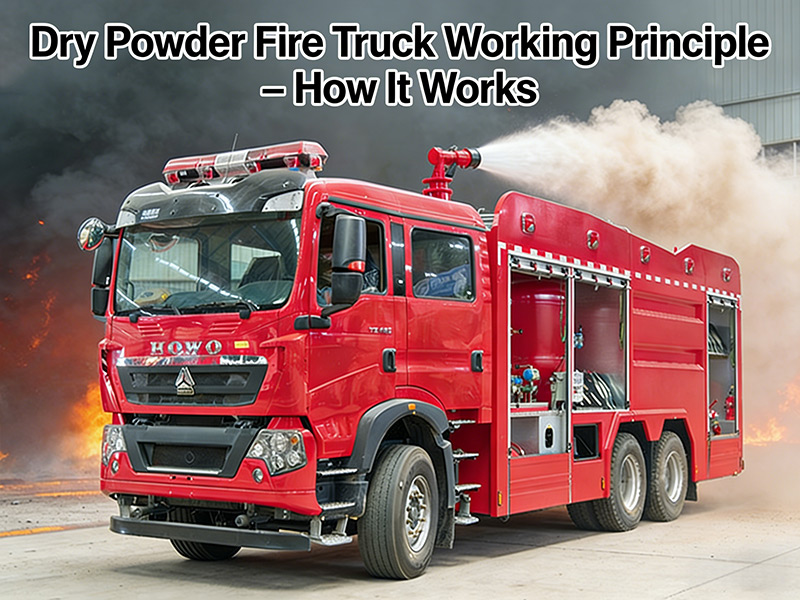

A dry powder fire truck is a specialized firefighting vehicle designed to extinguish fires using dry chemical powder instead of water or foam. It is particularly effective for Class B (flammable liquids) and Class C (energized electrical equipment) fires, where water or foam may be ineffective or dangerous. Dry powder works by interrupting the chemical chain reaction of the fire, creating a cloud of fine particles that separates the fuel from oxygen.

I. What Is a Dry Powder Fire Truck?

A dry powder fire truck carries a tank filled with dry chemical powder, typically based on monoammonium phosphate or sodium bicarbonate. It uses a compressed gas system — usually nitrogen or compressed air — to propel the powder through hoses and nozzles onto the fire. Unlike water or foam trucks, dry powder trucks do not require mixing or proportioning systems. The powder is stored ready for immediate discharge.

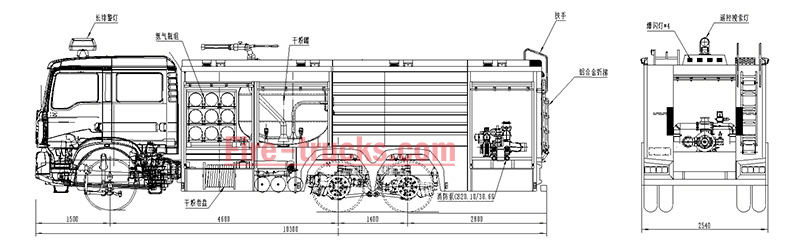

II. Key Components of a Dry Powder Fire Truck

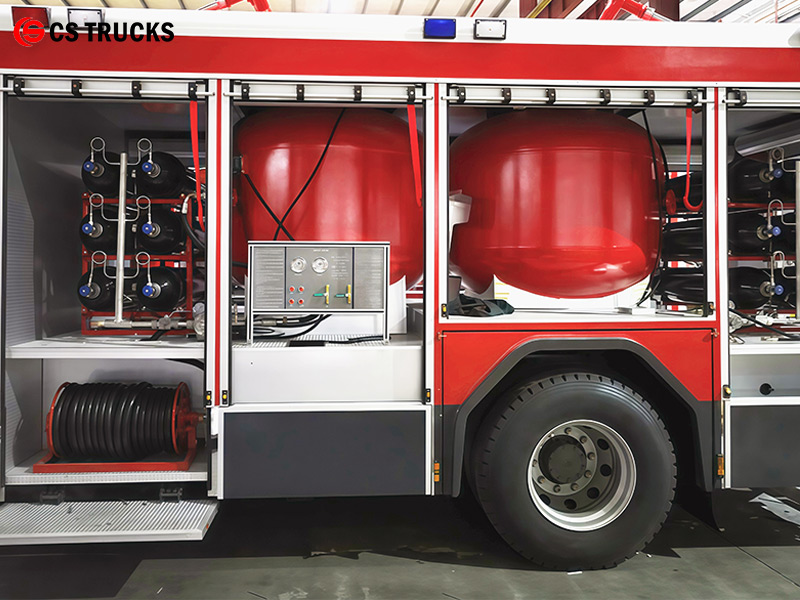

1. Powder tank: Stores the dry chemical powder, typically made of carbon steel or stainless steel with anti-corrosion coating

Tank Design Features:
› Bottom: Equipped with an air inlet pipe
› Top: Includes pressure gauge connector, outlet connector, and safety valve
› Inlet structure: One-way valve prevents backflow
› Material: Carbon steel with anti-corrosion treatment

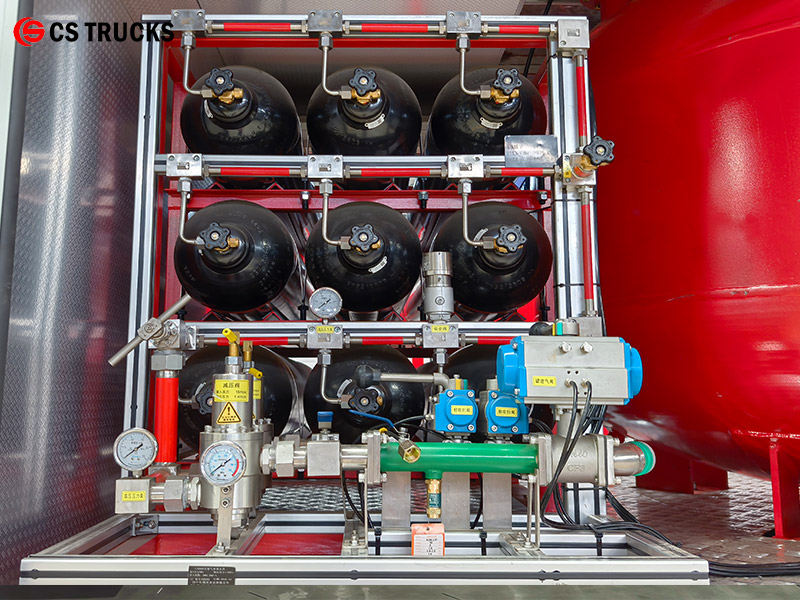

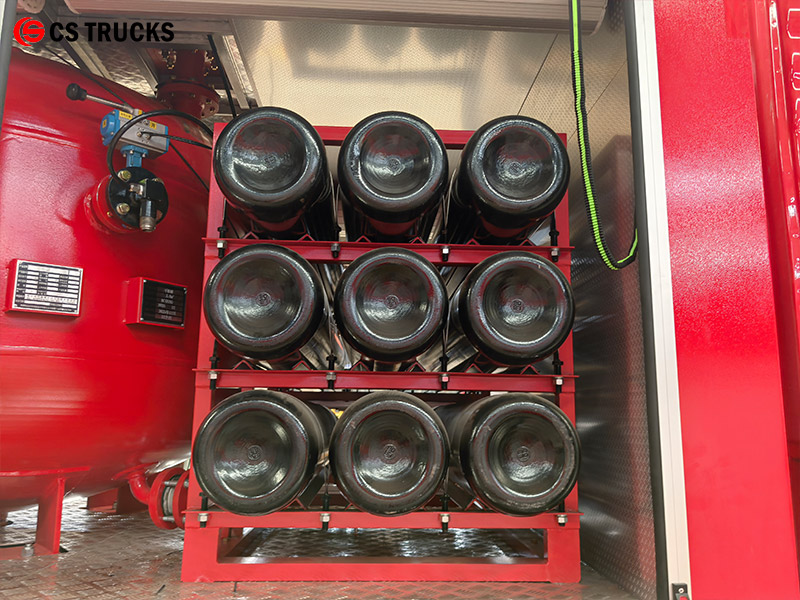

2. Nitrogen Propellant gas cylinders: Store compressed nitrogen or air at high pressure (typically 15-20 MPa)

to propel the powder

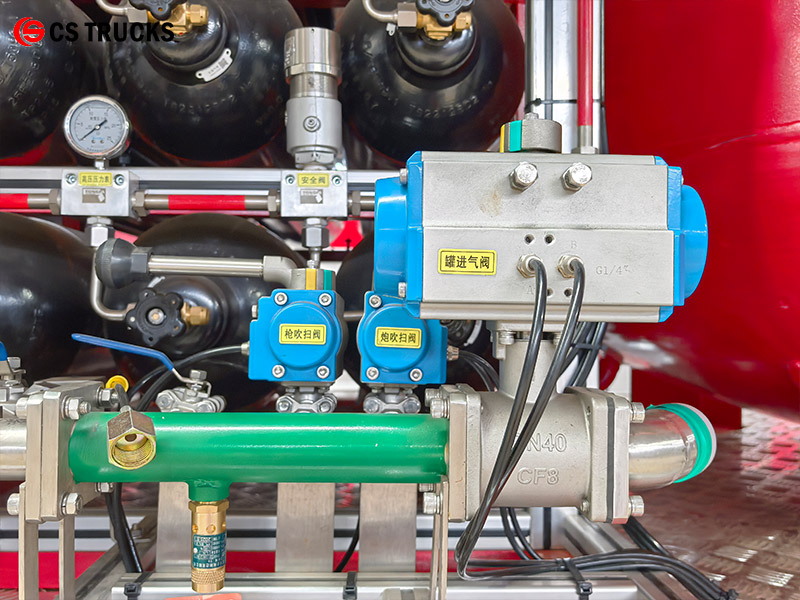

3. Pressure regulator: Reduces gas pressure from cylinders to a safe operating level

4. Powder discharge valve: Controls the flow of powder from the tank into the discharge line

5. Hoses and nozzles: Deliver the powder to the fire; dry powder nozzles are designed to prevent clogging

6. Control panel: Allows the operator to pressurize the tank, open valves, and control discharge

7. Piping system: Connects the powder tank, gas cylinders, and discharge points

III. How Does a Dry Powder Fire Truck Work?

The working principle of a dry powder fire truck can be broken down into several key steps.

Step 1: Powder Loading

Dry powder is loaded into the tank through the powder fill port. Note that no caked powder should be poured into the tank to avoid pipe blockage. The powder must be kept clean and free-flowing.

Step 2: Nitrogen Charging

The nitrogen system must be used together with the dry powder system. Appropriate nitrogen cylinders are selected based on the dry powder truck's capacity. Before operation, close the nitrogen inlet valve, open one or both cylinder valves and the nitrogen outlet valve. Check that the high pressure gauge reads 13 MPa and the low pressure gauge reads 1.4 MPa.

Step 3: Tank Pressurization

When the low pressure gauge shows a stable reading of 1.4 MPa, open the tank feed valve button. Check the tank pressure gauge. When the pressure stabilizes at 1.4 MPa, the dry powder is ready for discharge. At this point, the tank feed valve button can be closed.

Step 4: Powder Discharge

Open the powder gun outlet button. Use the piping and powder gun to carry out the fire extinguishing process. The dry powder is propelled through the hose and nozzle onto the fire.

Step 5: Post-Operation Cleaning

After dry powder discharge operations are completed, close the gun outlet button. Open the pipe and gun cleaning button. Use residual nitrogen to clean the piping and gun. Close all valves to prepare for the next operation.

The powder does not cool the fuel significantly; instead, it chemically inhibits combustion. This makes dry powder extremely fast-acting on flammable liquid and gas fires.

IV. Where Dry Powder Fire Trucks Work Best

Dry powder fire trucks are essential for specific high-risk environments:

› Oil and gas facilities: Refineries, drilling platforms, natural gas plants

› Chemical plants: Facilities handling flammable liquids and gases

› Airports: Aircraft fuel fires and ground fuel spills

› Power stations: Electrical fires in generators, transformers, and switchgear

› Industrial paint shops: Flammable solvent and paint fires

› Flammable gas storage: Propane, butane, LNG, and LPG facilities

› Marine terminals: Shipboard and dock fuel fires

V. Types of Dry Powder

Powder Type	Base Chemical	Best Application
ABC powder	Monoammonium phosphate	Class A, B, C fires (general purpose)
BC powder	Sodium bicarbonate	Class B and C fires only
D powder	Specialty salts (sodium chloride, graphite)	Class D (combustible metals like magnesium, titanium)

VI. Advantages and Limitations

Advantages of Dry Powder Fire Trucks

› Fast knockdown: Dry powder extinguishes flammable liquid and gas fires in seconds

› Electrical safety: Non-conductive, safe for energized electrical equipment

› Versatile: ABC powder can handle Class A, B, and C fires

› Simple operation: No mixing or proportioning required

› Wide temperature range: Effective from -40°C to +60°C

› No freezing issues: Unlike water, powder does not freeze

Limitations of Dry Powder Fire Trucks

› Limited duration: Powder supply is finite; discharge typically lasts 30-120 seconds

› Visibility issues: Powder cloud can reduce visibility for firefighters

› Cleanup required: Powder leaves residue that must be cleaned

› Not for Class A deep-seated fires: Powder does not penetrate deep into burning materials

› Health concerns: Powder can irritate eyes and respiratory system

VII. Conclusion

Dry powder fire trucks are commonly found at airports, oil refineries, chemical plants, power stations, and industrial facilities where flammable liquids and gases are present. While they have limitations — such as limited discharge duration and post-fire cleanup requirements — their speed and effectiveness on Class B and C fires make them indispensable for high-risk environments.
